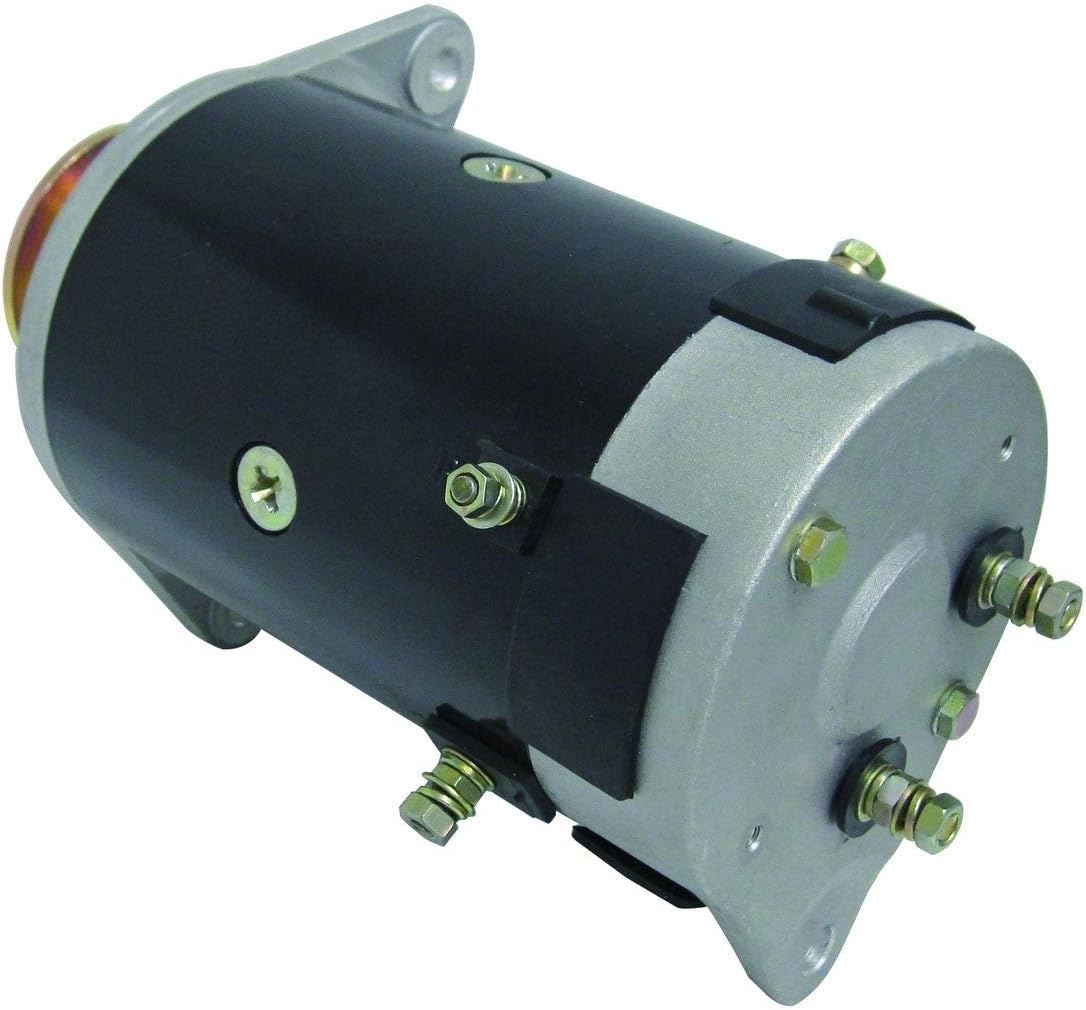

NEW Starter Generator Compatible With Club Car Ds Series Fe290 Fe350 1996-2006

IMPORTANT NOTICE: There are two very common issues users experience with these units. The first?and most common? are incorrectly wired units. These units are bi-directional (they work both clockwise and counterclockwise). However, if they are not wired correctly (mismatched wiring) the unit will spin, but not charge. It will seem as though the unit is properly operating; however it will only function for a temporarily. At some point the unit will overheat and blow the armature and brushes. This is not due to a faulty unit, but rather incorrect wiring. The second common failure is the external voltage regulator. When the regulator fails, the starter/generator will overcharge and burn. . Description: Motor Generator OEM(s): E-Z-Go, Hitachi, Toro Voltage: 12 Amps: 20 Rotation: Reversible OD: 4.461in / 113.3mm Shaft OD: 0.669in / 17mm Length: 9.067in / 230.3mm Terminal 1 Size: M6-1.0 Terminal 2 Size: M6-1.0 Terminal 3 Size: M6-1.0 Terminal 4 Size: M6-1.0 Shaft: M16-1.5 Threaded Shaft Current Type: DC Notes: DF Terminal Is M5-0.8 CLICK HERE FOR WIRING DIAGRAM AND TECH. CLICK HERE FOR MORE WIRING DIAGRAMS. THIS UNITS IS COMPATIBLE WITH AND A REPLACEMENT FOR THE FOLLOWING : Advanced Motors and Drives AMD 114-05-4001 Club Car 105190101 Bosch 0010350018 E-Z-Go 16511G1 Hitachi GSB107-01, GSB107-01E, GSB107-03, GSB107-03B, GSB107-04A, GSB107-04C Mando M003393 TMC001B0021 Wilson 72-25-15421, 92-15-6029 OTHER OEMS 1012316 THIS UNIT IS COMPATIBLE WITH AND A

• 100% NEW UNIT MANUFACTURED WITH 100% PREMIUM COMPONENTS
• ENGINEERED TO MEET AND EXCEED OEM SPECIFICATIONS
• BUYMCR - DRIVIN' THE MOTOR CITY SINCE 1963
